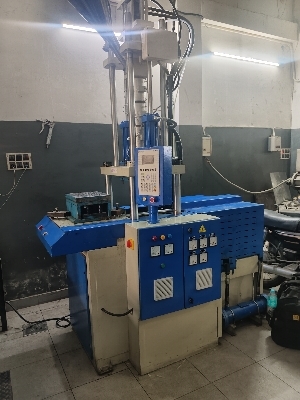

Single slading vertical Injection & Vertical Clamping injection molding machine
Single slading vertical Injection & Vertical Clamping injection molding machine

Single slading vertical Injection & Vertical Clamping injection molding machine

Price 900000 INR/ Unit

MOQ : 01 Unit

Single slading vertical Injection & Vertical Clamping injection molding machine Specification

  • Product Type
  • Plastic Vertical injection molding machine
  • Material
  • Other
  • Type
  • Plastic Injection Molding Machine
  • Style
  • Vertical
  • Weight (kg)
  • 1200
  • Computerized
  • Yes
  • Automatic
  • Yes
  • Control System
  • PLC Control
  • Clamping Force
  • 20 to 55
  • Mold Thickness
  • 150 to 300
  • Ejector Stroke
  • 50
  • Ejector Force
  • 10kn
  • Injection Rate
  • 5
  • Injection Pressure
  • 1500 psi
  • Screw Diameter
  • 35
  • Screw Torque
  • 4
  • Tie Bar Size
  • 300 x 250
  • Screw Stroke
  • 135
  • Opening Stroke
  • 200
  • Heating Power
  • 3kw
  • Fuel Tank Capacity
  • 110
  • Pump Pressure
  • 200bar
  • Voltage
  • 3 phase
  • Feature
  • High Efficiency, ECO Friendly, Low Noise, Lower Energy Consumption, Smooth Running, High Speed Response, High Performance
  • Warranty
  • 1 years


Single slading vertical Injection & Vertical Clamping injection molding machine Trade Information

  • Minimum Order Quantity
  • 01 Unit
  • FOB Port
  • Ahmedabad
  • Payment Terms
  • Cash Advance (CA), Cheque
  • Supply Ability
  • 01 Unit Per Week
  • Delivery Time
  • 45 Days
  • Main Export Market(s)
  • Asia, Australia, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India


About Single slading vertical Injection & Vertical Clamping injection molding machine

The Single Sliding Vertical Injection & Vertical Clamping Injection Molding Machine is engineered for precision molding of insert-loaded components, offering stable vertical clamping and accurate vertical injection performance. The single sliding table design improves operator efficiency by allowing safe mold loading/unloading outside the clamping area while ensuring consistency in high-volume production. This machine delivers high injection accuracy, strong clamping stability, and efficient material plasticizationideal for insert molding applications in electronics, automotive, medical, and consumer goods industries. Key Technical Features Vertical Injection + Vertical Clamping Ensures accurate material flow and balanced cavity filling. Ideal for precision insert molding. Single Sliding Table Mechanism Allows part loading/unloading on one sliding platen. Enhances safety and reduces cycle time. High-Rigidity Clamping Unit Equipped with precision tie-bar system and strong clamping force. Ensures uniform mold pressure and superior part quality. Precision Injection System High-response injection unit for stable shot control. Suitable for engineering plastics and high-temperature materials. Energy-Efficient Hydraulic Low power consumption with high-speed response. Smooth pressure switching and consistent molding cycles. User-Friendly Control Panel PLC multi-stage temperature, pressure, and speed control. Supports real-time monitoring and storage of molding parameters. Typical Specifications (Customizable) Clamping Force: 15 to 200 Tons Injection Capacity: 50g 500g (varies by model) Screw Diameter: 2555 mm Injection Pressure: Up to 300 bar Sliding Table Stroke: 300600 mm Daylight Opening: Adjustable, model-dependent Heating Zones: 35 zone barrel heating Power System: Hydraulic Mold Height: 150350 mm
